145-220GHz WR-5 WAVEGUIDE LOAD VN-WGLD-145220-WR5

145-220GHz WR-5 WAVEGUIDE LOAD

• Low insertion loss (by design, as a terminating load)
• Suitable for high‑power and low‑power applications
• Protection of sensitive transmitter components

A WAVEGUIDE LOAD is a passive, non-radiating termination device used in waveguide transmission systems. Its primary electrical characteristic is to present a matched impedance (typically 50 ohms equivalent or the waveguide’s characteristic impedance) to the source, thereby absorbing incident microwave energy with minimal reflection.

VN-WGLD-145220-WR5.pdf

• Absorption of Microwave Energy:
  A WAVEGUIDE LOAD converts electromagnetic wave energy into heat, preventing standing waves. Any high‑power system requires a WAVEGUIDE LOAD to terminate unused ports.

• Reduction of Voltage Standing Wave Ratio (VSWR):
  By absorbing nearly all incident power, a WAVEGUIDE LOAD maintains a low VSWR (typically <1.05), ensuring signal source stability and measurement accuracy.

• Protection of Sensitive Components:
  During transmitter testing or amplifier tuning, a WAVEGUIDE LOAD acts as a dummy antenna. Without a WAVEGUIDE LOAD, reflected power could destroy expensive devices such as magnetrons or solid‑state amplifiers.

145-220GHz waveguide load

WR-5 waveguide load

VN-WGLD-145220-WR5 waveguide device

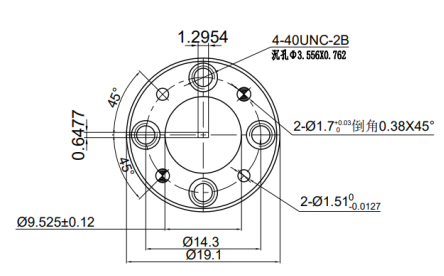

145-220GHz WR-5 WAVEGUIDE LOAD VN-WGLD-145220-WR5 Images
